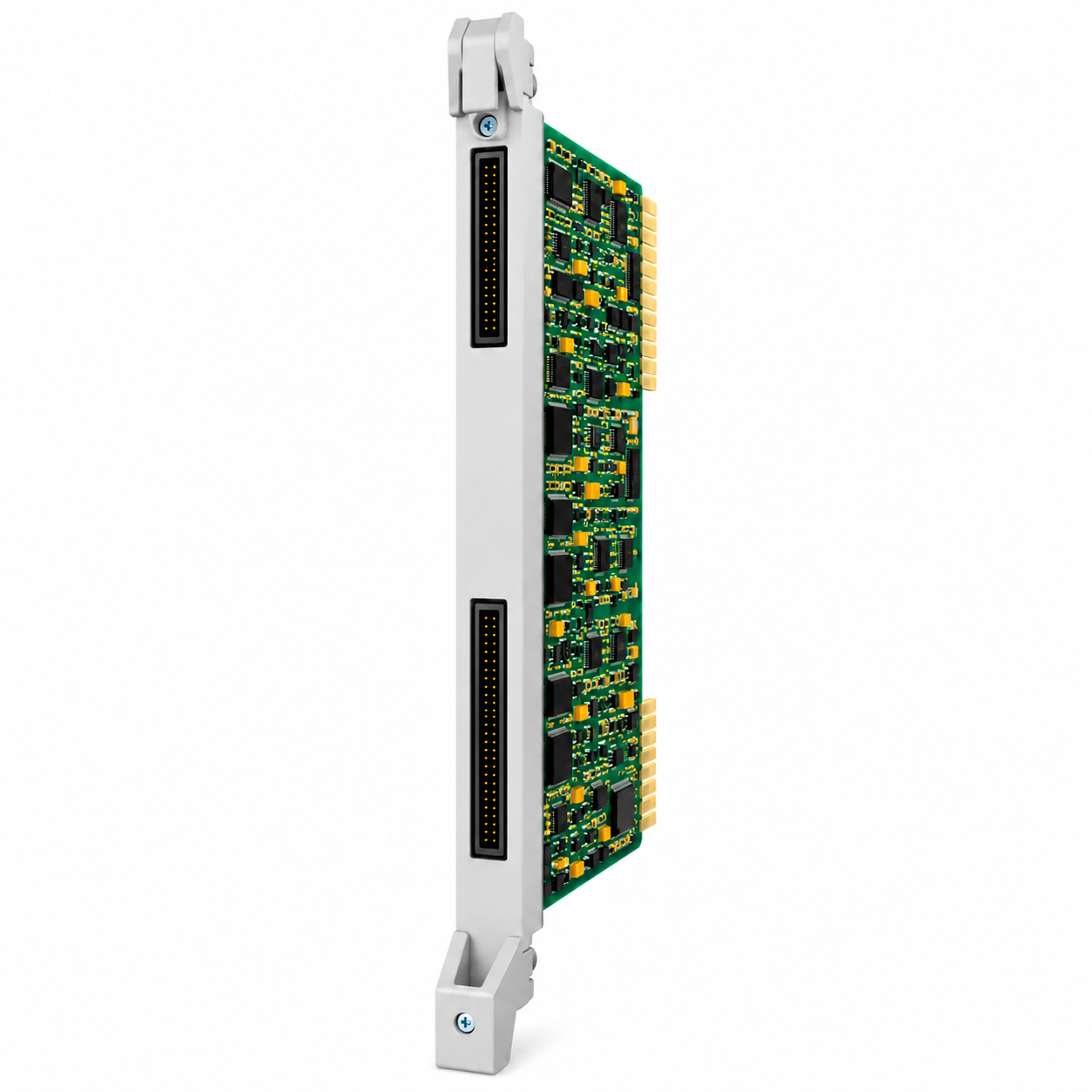

Merlin Magix 800 GS/LS-ID Module Features
Merlin Magix 800 GS/LS-ID Module is an eight-port analog trunk interface module designed for compatible AT&T MERLIN MAGIX business communications systems. It provides eight outside telephone line connections that can support compatible ground-start or loop-start telephone service.
The Merlin Magix 800 GS/LS-ID Module is designed for businesses maintaining or expanding an existing MERLIN MAGIX telephone system. Its eight-port configuration provides additional outside line capacity, while Caller ID compatibility on supported loop-start lines allows connected telephone equipment to display incoming caller information when the appropriate service and system features are available.
This refurbished module supports MERLIN MAGIX Releases 1.0 through 4.0 and includes technical support and a 12-month warranty.
Key Features
- Eight Outside Line Ports: Adds up to eight outside telephone line connections to a compatible MERLIN MAGIX system.
- Ground-Start Support: Supports compatible ground-start analog trunk service.
- Loop-Start Support: Supports compatible loop-start analog telephone lines.
- Caller ID Compatibility: Provides Caller ID support on compatible loop-start telephone lines.
- Flexible Trunk Configuration: Supports appropriate ground-start and loop-start line arrangements within the system’s configuration requirements.
- MERLIN MAGIX Compatibility: Designed for MERLIN MAGIX Releases 1.0 through 4.0.
- Modular Installation: Installs in a supported telecommunications system carrier.
- MERLIN LEGEND Carrier Installation: Requires a compatible clamshell adapter.
- Replacement Application: Suitable for replacing an existing compatible outside line module.
- Technical Support: Technical support included.
- Warranty: Includes a 12-month warranty.
Technical Specifications
- Product: MERLIN MAGIX 800 GS/LS-ID Module
- Module Type: Analog Outside Line Interface
- Outside Line Ports: 8
- Supported Trunk Types: Ground-Start and Loop-Start
- Caller ID: Supported on Compatible Loop-Start Lines
- System Compatibility: MERLIN MAGIX Releases 1.0 through 4.0
- MERLIN LEGEND Carrier Requirement: Compatible Clamshell Adapter
- Condition: Refurbished
- Warranty: 12 Months
Ground-Start and Loop-Start Connectivity
The Merlin Magix 800 GS/LS-ID Module provides eight ports for connecting compatible analog outside telephone lines. These connections allow the communications system to access telephone services provided through supported ground-start or loop-start facilities.
Ground-start service is commonly associated with business telephone trunk applications, while loop-start service is widely used for conventional analog telephone connections.
The appropriate trunk type must be supported by the telephone service provider and configured correctly within the MERLIN MAGIX system.
Caller ID Support
The Merlin Magix 800 GS/LS-ID Module supports Caller ID functionality on compatible loop-start lines.
When Caller ID service is available from the telephone provider, supported MERLIN MAGIX equipment can use the incoming caller information according to the capabilities of the installed processor, software release, and connected telephone models.
Caller ID availability and display features depend on the telecommunications service and system configuration.
Compatibility
The Merlin Magix 800 GS/LS-ID Module is compatible with the following MERLIN MAGIX system releases:
- MERLIN MAGIX Release 1.0
- MERLIN MAGIX Release 2.0
- MERLIN MAGIX Release 3.0
- MERLIN MAGIX Release 4.0
Important: Installation in a compatible MERLIN LEGEND carrier requires an appropriate clamshell adapter. MERLIN LEGEND processor and release compatibility should be verified before ordering.
Customers should confirm processor compatibility, carrier configuration, available module slots, and outside line service requirements before purchasing.
Applications
The Merlin Magix 800 GS/LS-ID Module is suitable for businesses, telecommunications technicians, and service providers maintaining established MERLIN MAGIX telephone installations.
It can be used to replace a defective outside line module or add supported analog trunk connections to an existing communications system.
Maintaining compatible replacement equipment helps businesses preserve their existing telecommunications infrastructure and continue using established telephone services.
Includes
- Merlin Magix 800 GS/LS-ID Module
- Technical Support
- 12-Month Warranty
Condition and Warranty
Condition: Refurbished.
Warranty: 12 months.
