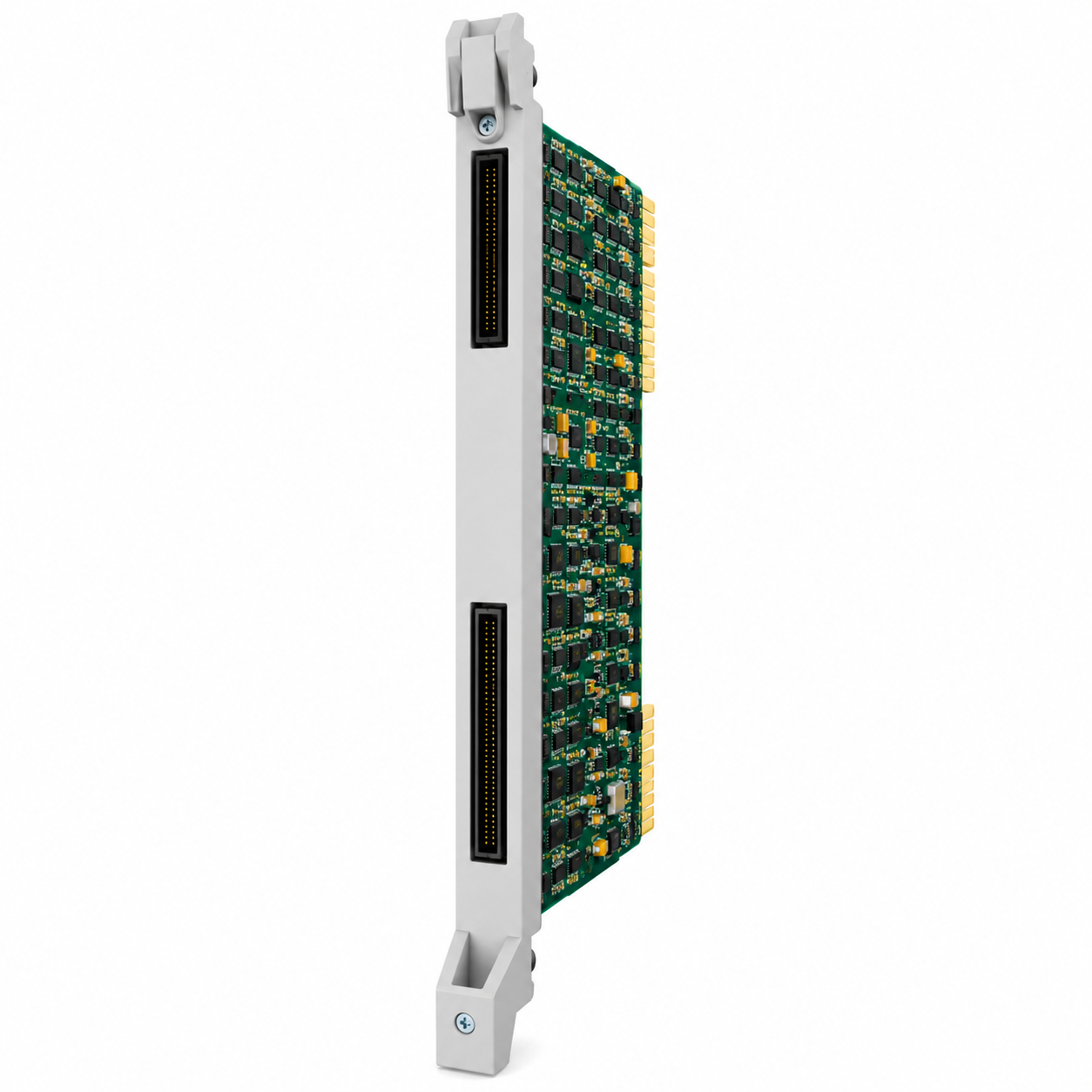

Merlin Magix 408 GS/LS-ID/MLX Module (61805) Features
Merlin Magix 408 GS/LS-ID/MLX Module (61805) is a combination trunk and digital station interface module designed for compatible AT&T MERLIN MAGIX and MERLIN LEGEND business communications systems. This module provides connectivity for up to four ground-start or loop-start outside telephone lines and eight compatible MLX digital station devices.
The Merlin Magix 408 GS/LS-ID/MLX Module (61805) combines outside line connectivity, digital station support, and Caller ID functionality in a single telecommunications module. It is a practical replacement or expansion component for businesses maintaining established MERLIN MAGIX or MERLIN LEGEND telephone systems.
In addition to supporting compatible MLX telephones, the module provides connections for supported Basic Rate Interface (BRI) adjuncts and Computer Telephony Integration (CTI) adjunct equipment.
Key Features
- Four Outside Line Connections: Supports any combination of up to four ground-start or loop-start telephone lines.
- Eight Digital Station Ports: Provides eight ports for compatible MLX digital telephones and supported adjunct devices.
- Caller ID Support: Compatible with loop-start Caller ID number and name services, subject to system release requirements.
- MLX Telephone Compatibility: Supports compatible MERLIN LEGEND MLX series digital telephones.
- BRI Adjunct Connectivity: Provides connections for supported Basic Rate Interface adjunct equipment.
- CTI Adjunct Connectivity: Supports compatible Computer Telephony Integration adjuncts.
- Power Failure Transfer: Includes one power failure transfer port.
- MERLIN MAGIX Compatibility: Designed for compatible MERLIN MAGIX communications systems.
- MERLIN LEGEND Compatibility: Supports MERLIN LEGEND Release 2.0 or higher.
- Caller ID Name Display: Requires MERLIN LEGEND Release 7.0 for supported name display functionality.
- Clamshell Requirement: Requires a compatible clamshell adapter for installation in MERLIN LEGEND carriers.
Technical Specifications
- Product: MERLIN MAGIX 408 GS/LS-ID/MLX Module
- Part Number: 61805
- Outside Line Ports: 4
- Trunk Types: Ground-Start and Loop-Start
- Digital Station Ports: 8
- Supported Stations: Compatible MLX digital telephones, BRI adjuncts, and CTI adjuncts
- Power Failure Transfer Ports: 1
- Caller ID: Number and Name Support on Compatible Loop-Start Service
- MERLIN LEGEND Compatibility: Release 2.0 or Higher
- MERLIN LEGEND Caller ID Name Display: Release 7.0 Required
- Condition: Refurbished
Ground-Start and Loop-Start Trunk Connectivity
The Merlin Magix 408 GS/LS-ID/MLX Module supports up to four outside telephone lines configured as ground-start, loop-start, or a supported combination of both.
This flexibility allows businesses to maintain compatible analog trunk services while connecting digital telephone stations through the same module.
Actual trunk operation depends on the telecommunications service provided, system configuration, and applicable programming requirements.
MLX Digital Station Connectivity
The module includes eight digital station ports for compatible MERLIN LEGEND MLX telephones, BRI adjuncts, and CTI adjunct equipment.
These ports provide a convenient way to connect supported digital station devices without requiring a separate station interface module for the same eight connections.
The availability of individual telephone and adjunct features depends on the installed processor, software release, and connected equipment.
Caller ID Features
The Merlin Magix 408 GS/LS-ID/MLX Module provides support for compatible Caller ID number and name services on loop-start telephone lines.
Caller ID name display on a MERLIN LEGEND system requires Release 7.0. Customers operating earlier MERLIN LEGEND releases should verify the Caller ID features supported by their installed system.
Caller ID functionality also depends on service availability from the telephone provider and the capabilities of the connected telephone equipment.
Compatibility
The Merlin Magix 408 GS/LS-ID/MLX Module (61805) is designed for supported configurations of the following systems:
- AT&T MERLIN MAGIX Integrated System
- AT&T MERLIN LEGEND Release 2.0 or Higher
Important: Caller ID name display on MERLIN LEGEND requires Release 7.0. A compatible clamshell adapter is required when installing the module in a MERLIN LEGEND carrier.
Customers should verify processor release, carrier configuration, telephone compatibility, trunk service requirements, and available module slots before ordering.
Applications
The Merlin Magix 408 GS/LS-ID/MLX Module is suitable for businesses, telecommunications technicians, and service providers maintaining existing MERLIN MAGIX or MERLIN LEGEND telephone installations.
It can be used to replace a defective combination trunk and station module or provide additional supported line and station connections within an established system.
Includes
- Merlin Magix 408 GS/LS-ID/MLX Module (61805)
Condition
Condition: Refurbished.
