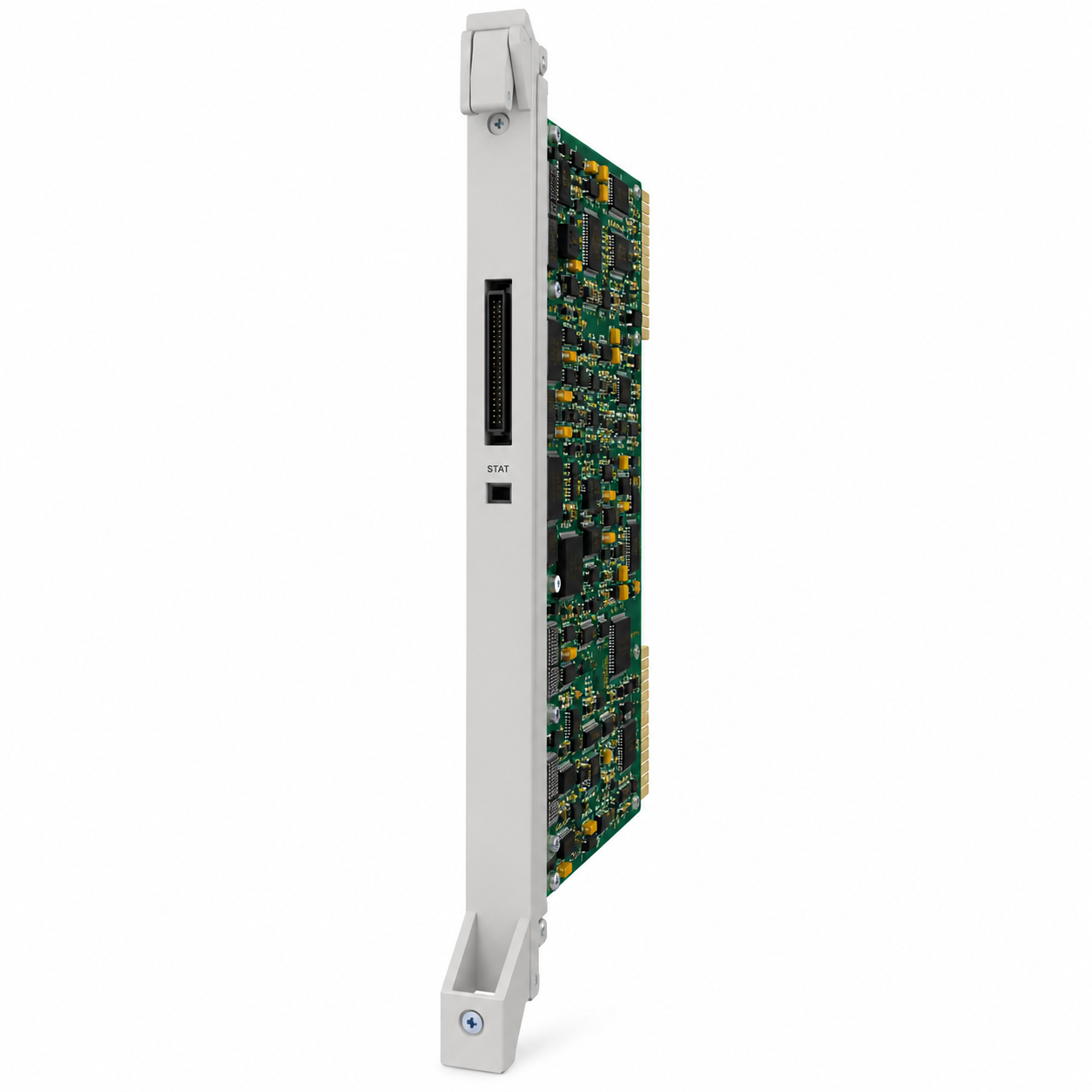

Merlin Magix 100 DCD Module with CSU/DSU (61880)
The Merlin Magix 100 DCD Module with CSU/DSU (61880) is a digital trunk interface module designed for compatible AT&T MERLIN MAGIX business communications systems. This module provides connectivity for one DS1 digital circuit containing 24 channels, which can be configured for either T1 or Primary Rate Interface (PRI) service.
Featuring an integrated Channel Service Unit/Data Service Unit (CSU/DSU), the Merlin Magix 100 DCD Module supports digital telecommunications connectivity in compatible MERLIN MAGIX Release 1.5 or higher installations.
This refurbished module provides a practical replacement solution for businesses maintaining established MERLIN MAGIX telephone systems that rely on digital trunk services. Its modular design allows the existing communications infrastructure to remain in service while replacing defective or aging interface hardware.
Key Features
- DS1 Digital Interface: Connects one DS1 circuit with 24 channels.
- T1 Service Support: Supports configuration for compatible T1 digital trunk service.
- PRI Service Support: Supports configuration for compatible Primary Rate Interface service.
- Built-In CSU/DSU: Includes integrated Channel Service Unit/Data Service Unit functionality.
- MERLIN MAGIX Compatibility: Built-in CSU/DSU functionality supported with MERLIN MAGIX Release 1.5 or higher.
- System Module Limit: Supports a maximum of three DS1/INA modules per compatible system.
- Carrier Module Limit: Maximum of two DS1/INA modules per carrier.
- Modular Installation: Designed for installation in a supported telecommunications system carrier.
- MERLIN LEGEND Installation: Requires an appropriate clamshell adapter when installed in a compatible MERLIN LEGEND carrier.
- Replacement Application: Suitable for replacing an existing compatible digital trunk module.
- Warranty: Includes a 12-month warranty.
Technical Specifications
- Product: MERLIN MAGIX 100 DCD Module with CSU/DSU
- Part Number: 61880
- Interface Type: DS1 Digital Trunk
- DS1 Circuits: 1
- DS1 Channels: 24
- Supported Service Types: T1 or PRI
- CSU/DSU: Integrated
- MERLIN MAGIX Release: 1.5 or higher for built-in CSU/DSU support
- Maximum DS1/INA Modules: 3 per system
- Maximum DS1/INA Modules Per Carrier: 2
- Condition: Refurbished
T1 and PRI Connectivity
The Merlin Magix 100 DCD Module provides a digital trunk connection for businesses using supported T1 or PRI telecommunications services.
Its DS1 interface provides 24 channels, with the available voice or signaling capacity determined by the selected service type and carrier configuration. For example, conventional North American PRI service commonly uses 23 bearer channels and one signaling channel.
The module must be programmed for the appropriate digital service and connected to compatible carrier-provided facilities.
Built-In CSU/DSU
The integrated CSU/DSU provides digital circuit interface functionality for supported MERLIN MAGIX Release 1.5 or higher configurations.
This integrated design helps simplify compatible digital trunk installations by incorporating CSU/DSU functionality within the module rather than relying on a separate external unit for that function.
Installation requirements should be confirmed against the telecommunications provider’s circuit specifications and the applicable MERLIN MAGIX documentation.
Compatibility
The Merlin Magix 100 DCD Module with CSU/DSU (61880) is designed for compatible AT&T MERLIN MAGIX systems, with built-in CSU/DSU support on Release 1.5 or higher.
For installations involving a MERLIN LEGEND carrier, an appropriate clamshell adapter is required. Customers should independently verify processor release, module support, and digital trunk compatibility before ordering.
Important: The maximum supported configuration is three DS1/INA modules per system and two per carrier. These limitations should be considered when planning replacement or expansion.
Applications
The Merlin Magix 100 DCD Module is suitable for telecommunications technicians, businesses, and service providers maintaining legacy MERLIN MAGIX digital trunk installations.
It can be used as a replacement for an existing compatible module or as part of a supported digital trunk configuration. Maintaining compatible spare modules can help reduce service interruptions and extend the operating life of established business communications equipment.
Includes
- Merlin Magix 100 DCD Module with CSU/DSU (61880)
- 12-Month Warranty
Condition and Warranty
Condition: Refurbished.
Warranty: 12 months.
