Merlin Magix 016 T/R Module (61807) Features

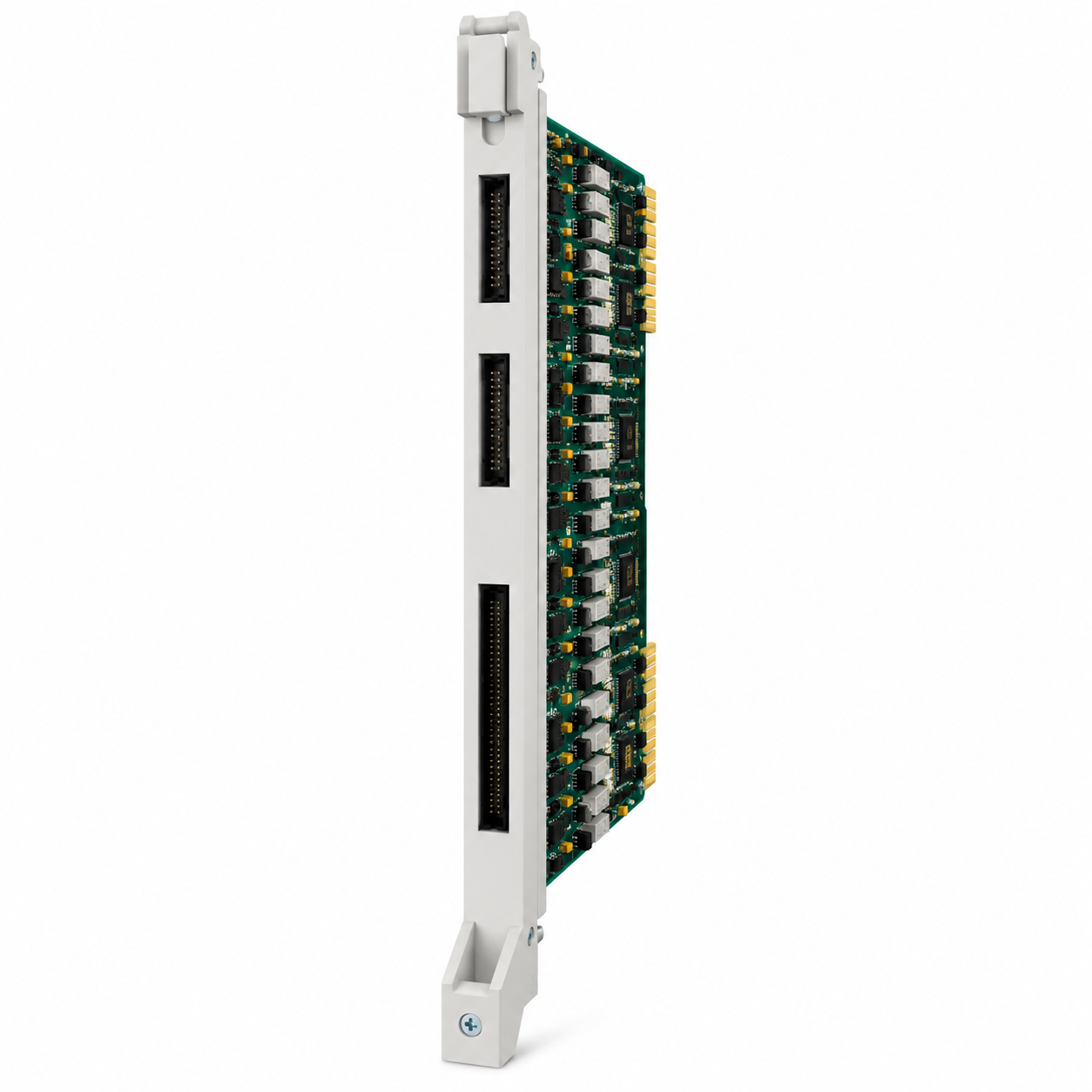

The Merlin Magix 016 T/R Module (61807) is a 16-port analog station interface module designed for compatible AT&T MERLIN MAGIX and MERLIN LEGEND business communications systems. This refurbished module provides connectivity for rotary and Touch-Tone analog tip/ring equipment, including single-line telephones, fax machines, modems, and voicemail ports.
Featuring 16 analog station ports, four integrated Touch-Tone receivers, and a built-in ring generator, the Merlin Magix 016 T/R Module provides a practical solution for expanding or maintaining analog telephone connectivity in an existing business communications system.
The module is compatible with supported MERLIN MAGIX systems and MERLIN LEGEND Release 4.0 or higher. Installation in a MERLIN LEGEND carrier requires the appropriate clamshell adapter.
Key Features
- 16 Analog Station Ports: Provides connections for up to 16 compatible analog tip/ring devices.
- Rotary Telephone Support: Supports compatible pulse-dialing single-line telephones.
- Touch-Tone Telephone Support: Supports compatible DTMF analog telephones.
- Four Touch-Tone Receivers: Includes four integrated receivers for supported Touch-Tone signaling applications.
- Built-In Ring Generator: Provides ringing capability for supported analog station equipment.
- Fax Machine Connectivity: Supports compatible analog fax machines.
- Modem Connectivity: Provides connections for supported analog modems.
- Voicemail Connectivity: Supports compatible analog voicemail ports.
- Dual System Compatibility: Operates in supported MERLIN MAGIX and MERLIN LEGEND configurations.
- MERLIN LEGEND Installation: Requires a compatible clamshell adapter.
- Replacement Module: Suitable for replacing an existing compatible 016 T/R module.
Technical Specifications
- Product: MERLIN MAGIX 016 T/R Module
- Part Number: 61807
- Interface Type: Analog Tip/Ring
- Station Ports: 16
- Touch-Tone Receivers: 4
- Ring Generator: Built-In
- Dialing Support: Rotary and Touch-Tone
- Supported Equipment: Compatible analog telephones, fax machines, modems, and voicemail ports
- System Compatibility: MERLIN MAGIX and MERLIN LEGEND Release 4.0 or higher
- Condition: Refurbished
Analog Station Connectivity
The Merlin Magix 016 T/R Module allows businesses to connect a variety of compatible analog devices to their telecommunications system. Its 16 station ports are useful for offices that continue to rely on traditional single-line telephones or specialized analog communications equipment.
The integrated Touch-Tone receivers support DTMF signaling, while the built-in ring generator provides ringing capability for connected analog stations. These features make the module a useful component in installations requiring analog telephone services alongside other MERLIN system equipment.
Compatibility
The Merlin Magix 016 T/R Module (61807) is designed for supported configurations of the following systems:
- AT&T MERLIN MAGIX Integrated System
- AT&T MERLIN LEGEND Release 4.0 or higher
Important: Installation in a MERLIN LEGEND carrier requires a compatible clamshell adapter. The adapter is not assumed included unless specifically identified in the product listing.
Customers should verify their processor release, carrier configuration, available module slots, power requirements, and connected equipment before ordering.
Applications
The Merlin Magix 016 T/R Module is suitable for businesses, telecommunications technicians, and service providers maintaining established MERLIN MAGIX and MERLIN LEGEND telephone installations.
It can be used to replace a defective analog station module or add supported analog station connections to an existing system. Maintaining compatible replacement hardware helps organizations preserve their telecommunications infrastructure and extend the operating life of legacy business telephone equipment.
Includes
- Merlin Magix 016 T/R Module (61807)
- 12-Month Warranty
Condition and Warranty
Condition: Refurbished.
Warranty: 12 months.
